Connectivity requirements and procedures

The technician will send you a test dockingport(url) 、agentID(vendorId)、agent code(signature)，Your channel merchants should be able to successfully connect these data with it。
Your company should go through the following process test in the test environment:

TestregisterloginWithdraw the balanceget(deduct)game pointsplay the gamemanage membership report

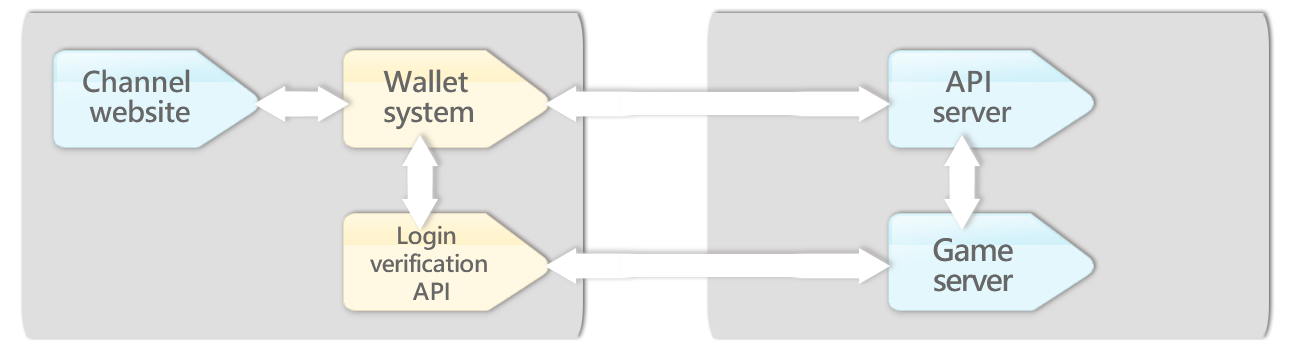

System Architecture

Your company, as a channel website, should firstly login in through the website, taking augment and deduction points as an example. If you choose the Lixin video message point and use its wallet system, when the order is sent out, you should use our ENTITY authentication( the agent ID (vendorId ),，the signature of the agent，the user that corresponds to the Lixin video, and the turn-around value) to call our Api server, and we will echo whether the value of return back is of success or failure, and your company will check the value of return back and judge whether the augment and deduction points has been successfully conducted and written into your company's database. The following is the system interface architecture。


Connecting the Api test Hello

Purpose

First use the test page to test whether the channel is connected

The final composition of url

Format

Method Post
Request Array
Response Json

Request

Field Type Description
cmd String Hello
vendorId String agent(aid)
signature String Agent identifier

Response

Field Type Description
errorCode Integer error code (0 : indicates success, the other for the failure)
errorMessage String Error Message
result String Return: HELLO

Api Fuction -MemberRegisterMemberRegister

Purpose

To add the offline account of theagent (vendorId)

user is a unique value in our system, it is recommended to add suffixes when registering (ex: kx_abc123).

maxwin, maxlose, limitType as part of risk control. Set the member's maximum win or lose amount.Please make good use of it

Request

Field Type Description
cmd String MemberRegister
vendorId String Agent(aid)
signature String Agent identifier
user String Account   minimum: 5 characters   maximum: 30 characters
password String Password   minimum: 6 characters  maximum: 64 characters
username String name   maximum: 30 characters
profile Integer Profile (unnecessary)
maxwin Integer Max Win (unnecessary)
(This is a part of risk control, please make good use of it)
maxlose Integer Max Lose (unnecessary)
(This is a part of risk control, please make good use of it)
mark String Note    maximum:20   (unnecessary)
rakeback Integer Note    Member rakeback set Zero   0:false ,1 :true (unnecessary)
limitType String ex:2,5,9,14,48,107,111,131 (unnecessary)
(This is a part of risk control, please make good use of it)
chip String chip split by comma，min:5 max:10 (unnecessary)
without params,default setting: 10,20,50,100,500,1000,5000,10000,20000,50000
available chips: 1, 5, 10, 20, 50, 100, 500, 1000, 5000, 10000, 20000, 50000, 100000, 200000, 1000000, 5000000, 10000000, 20000000, 50000000, 10000000, 20000000, 50000000, 100000000
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English (unnecessary)

Response

Field Type Description
errorCode Integer Error code (0 : indicates success, the others for the failure)
errorMessage String Error message
result String New augment completed

Errorcode

Api Function – SigninGame

Purpose

Get the member's sid and URL, so that the game is redirected to the lobby via this link.

Request

ErrorCode ErrorType Description
0 Operation successfully Successfully added
104 Operation failure New member information error, this account has been used!!
10404 Parameter errors The account is too long
10405 Parameter errors The account is too short
10406 Parameter errors The password is too short
10407 Parameter errors The note is too long
10409 Parameter errors The name is too long
10502 Parameter errors The account name must not be blank
10508 Parameter errors The password must not be blank
10509 Parameter errors The name must not be blank
10419 Parameter errors Error chip format (split by comma symbol)
10420 Parameter errors Error chip length (between 5-10)
10421 Parameter errors Error chip type
10422 Parameter errors Account only accepts English, numbers, underscores and @
10520 Parameter errors The superior broker only stops using or stops betting
Field Type Description
cmd String SigninGame
vendorId String The vendor (aid)
signature String The vendor identifier
user String The account
password String The password
lang integer The language
0 or null value: Simplified Chinese
1 English
2 Thai
3 Vietnamese
4 Japanese
5 Korean
6 Indian
7 Malaysian
8 Indonesian
9 for Traditional
10 Spanish
mode string skip through lobby to enter Baccarat
skip through lobby to enter Dragon and Tiger
skip through lobby to enter Roulette
skip through lobby to enter sic bo
skip through lobby to enter niuniu
skip through lobby to enter fantan
skip through lobby to enter sedie
(unnecessary)
voice string cn Mandarin
tw Cantonese
en English
th Thai
vi Vietnamese
ja Japanese
ko Korean
hi hindi
in Indonesian
ms Malay
es Spanish
(unnecessary)
returnurl string
isTest Integer 1:Test play (unnecessary)
size Integer 1:Embed iframe (unnecessary)
site Integer 9:for wechat (unnecessary)
slot Integer Play video games, 1:Open directly, Do not bring in:Original mode(unnecessary)
slotCode Integer slot=1 ,Video game type(unnecessary) video games list
slotGameId Integer slot=1 ,Video game code(unnecessary) video games list
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English (unnecessary)

Response

Field Type Description
errorCode Integer The error code (0: Successful; other values: Failed)
errorMessage String The error message
result String Returns the login game URL

Api function-LogoutGameLogoutGame

Purpose

Log out members to the game.

RequestRequest

Field Type Description
cmd String LogoutGame
vendorId String Agent(aid)
signature String Agent identifier
user String account (unnecessary, logout all member if input null)
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English

Response

Field Type Description
errorCode Integer Error code (0 : indicates success, the others for the failure)
errorMessage String Error message

Api function-ChangePasswordChangePassword

Purpose

To allow members of the agent Change Password

Request

Field Type Description
cmd String ChangePassword
vendorId String Agent(aid)
signature String Agent identifier
user String account
newpassword String password
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English

Response

Field Type Description
errorCode Integer Error code (0 : indicates success, the others for the failure)
errorMessage String Error message
result String Array

ErrorCode

ErrorCode ErrorType Description
0 Operation successfully The member’s operation was successful
10501 Operation failure No such account, please check it
10502 Parameter errors The account name must not be blank
10503 Operation failure The password must not be blank
10511 Operation failure New password can't be old password

Api function-GetAgentBalanceGetAgentBalance

Purpose

Request

Field Type Description
cmd String GetAgentBalance
vendorId String Agent(aid)
signature String Agent identifier
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English

Response

Field Type Description
errorCode Integer The error code (0: Successful; other values: Failed)
errorMessage String Error message
result float Get the current balance

ErrorCode

ErrorCode ErrorType Description
0 Operation successfully Get the current balance of the member

Api function- Get BalanceGetBalance

Purpose

Request

Field Type Description
cmd String GetBalance
vendorId String Agent(aid)
signature String Agent identifier
user String account
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English

Response

Field Type Description
errorCode Integer Error code (0 : indicates success, the others for the failure)
errorMessage String Error message result array
result float Get the current balance

Errorcode

ErrorCode ErrorType Description
0 Operation successfully Get the current balance of the member

Api Function-Change BalanceChangeBalance

Purpose

Request

Field Type Description
cmd String ChangeBalance
vendorId String Agent(aid)
signature String Agent identifier
user String The account
money float Changed Points of the member
order String The order number produced by yourcompany (unnecessary)maximum: 32 characters
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English (unnecessary)

Response

Field Type Description
errorCode Integer Error code (0 : indicates success, the others for the failure)
errorMessage String Error message
result Array
Field Type Description
yourOrderNum String The order number produced by your company
orderId String Transaction number of our company
Cash String Amount after operation

Errorcode

ErrorCode ErrorType Description
0 Operation successfully Transaction successful
901 Operation errors Turn point failed
10410 Operation failure Member transactions on the pen was unsuccessful, please contact customer service staff to unlock
10501 Operation failure No such account, please check it
10507 Operation failure This account is non-agent referral, this function is not available
10801 Parameter errors Changed points must not be 0
10802 Parameter errors Changed points is 0, or Parameter is not set
10803 Parameter errors Changed points must not be Chinese
10804 Operation failure May not repeat the transfer in 5 seconds
10805 Operation failure Failure of transferring, the current account has insufficient balance
10806 Operation failure Failure of transferring, the account agent has exceeded the credit limit
10807 Operation failure Failure of transferring, the ticket number already exists
10808 Operation failure The transfer failed, the number of transfers exceeded 10 times in one minute, and the account was locked
10810 Operation failure Abnormal connection, transaction unsuccessful

Api Function-Get Member Trade ReportGetMemberTradeReport

Purpose

Due to network environment problems (packet loss, packet blocking), or other force majeure factors that may lead to failure in changed points, and your company has written this number, so this function aims to search the disputed documents。

Report query interval is 30 seconds,no data was found report query interval is 10 seconds.

Please note : The report data is retained for 60 days.

Request

Field Type Description
cmd String GetMemberTradeReport
vendorId String Agent(aid)
signature String Agent identifier
user String The account
orderid String The serial number of this trading record by our company
order String The order number of this trading record by your company
startTime interger For example: 20190314000000 (00:00:00, 14th, March, 2011)
endTime interger For example: 20190314235959 (23:59:59, 14th, March, 2011)
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English
orderid and order is non-essential substitution,if you don't input startTime & endTime , it can only search for the user's transaction record within an hour。

Response

Field Type Description
errorCode Integer Error code (0 : indicates success, the others for the failure)
errorMessage String Error message
result Array
Field Type Description
orderid String Transaction number
addtime Date Transaction record time
money float Transaction amount
op_code Integer Changed point code: add points (121) deduct points (122)
subtotal float The current balance
ordernum String The order number of this trading record by your company
user String The trading account

Errorcode

ErrorCode ErrorType Description
0 Operation successfully The member’s operation was successful
107 Operation successfully The operation is successful but no data was found
10501 Operation failure No such account, please check it
10502 Parameter errors The account name must not be blank

Api Function-Get Date Time ReportGetDateTimeReport

Purpose

To look up the game record of the player or agent's membership time。

The starting time to ending time shouldn’t be more than one day searching by this function。

The search time read exactly on the seconds. For example: 20170809130101 (13:01:01,9th, August , 2017)

Report query interval is 30 seconds,no data was found report query interval is 10 seconds.

Please note : The report data is retained for 60 days.

Request

Field Type Description
cmd String GetDateTimeReport
vendorId String Agent(aid)
signature String Agent identifier
user String The account
startTime interger For example: 20170809130500(13:05:00,9th, August , 2017)
endTime interger For example: 20170809130101 (13:06:00,9th, August , 2017)
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English
timetype Integer 0:bettime, 1:updatetime
datatype Integer 0:winlose report, 1:tip report, 2:all
gameno1 Integer Event
gameno2 Integer eventChild (unnecessary)
If you want to query all users, it is unnecessary to input the user and it will be presented in time range。
If you needs to look up the starting time to the moment from the report, you need to substitute into startTime instead of endTime。

Response

Field Type Description
errorCode Integer Error code (0 : indicates success, the others for the failure)
errorMessage String Error message
result Array
Field Type Description
user String The account
betid interger order number
betTime date bet time
beforeCash float Amount before betting
bet float Bet amount
validbet float Valid bet
water float Recession amount
result float Result of bet
betCode String Please refer to
Bet Code Code
betResult String Bet result ex:"Banker"
waterbet String Bet recession amount
winLoss float Win or lose amount
gid interger Game type number 101:Baccarat, 102:Dragon and Tiger, 103:Roulette, 104:sic bo, 105:niuniu, 107:fantan, 108:sedie, 110:fishshrimpcrab
ip String IP
event or round interger Round number
eventChild or subround interger Subsidiary round number
tableId interger Table number
gameResult String Card type ex: Banker ♦3♦3 Player ♥9♣10
gname String Game name ex: Baccarat
commission Integer 0:general, 1:NO Commission
reset String has been reset or not
settime date updatetime

ErrorcodeerrorCode

ErrorCode ErrorType Description
0 Operation successfully The member’s operation was successful
107 Operation successfully The operation is successful but no data was found
101 Operation failure The ID information is wrong
102 Parameter errors Time format is wrong

Api Function-Get Tip ReportGetTipReport

Purpose

To search the balance record of the player in certain period.

Report query interval is 30 seconds,no data was found report query interval is 10 seconds.

Please note : The report data is retained for 60 days.

Request

Field Type Description
cmd String GetTipReport
vendorId String Agent(aid)
signature String Agent identifier
user String The account   unnecessary
startTime interger For example: 20170809 (9th, August, 2017)
endTime interger For example: 20170809 (9th, August, 2017)
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English

Response

Field Type Description
errorCode Integer Error code (0 : indicates success, the others for the failure)
errorMessage String Error message
result Array
Field Type Description
betId interger order number
Id interger Id
betTime date bet time
Tip float Tip amount
betResult String Bet result ex:" Tip_1_ "(the tip code begin with Tip)
winLoss float Win or lose amount
ip String ip
gid interger Game type number 101:Baccarat, 102:Dragon and Tiger, 103:Roulette, 104:sic bo, 105:niuniu, 107:fantan, 108:sedie, 110:fishshrimpcrab
event or round interger Round number
eventChild or round interger Subsidiary round number
tableId interger Table number
username String The account
gname String Game name ex: Baccarat

ErrorcodeerrorCode

ErrorCode ErrorType Description
0 Operation successfully The member’s operation was successful
107 Operation successfully The operation is successful but no data was found
101 Operation failure The ID information is wrong
102 Parameter errors Time format is wrong

API Function - EnableorDisablememEnableorDisablemem

Purpose

use api function to enable/disable agent or member login or bet.

Request

Field Type Description
cmd String EnableorDisablemem
vendorId String The vendor (aid)
signature String The vendor identifier
user String The account   please input account , use "," to separate if more account(can't login)
type String login/bet   login or bet
status String status to login or bet Y:enable, N:disable
syslang Integer 0:Chinese, 1:English

Response

Field Type Description
errorCode Integer The error code (0: Successful; other values: Failed)
errorMessage String The error message
result String reponse account info of enable/disable status,ex:member xxxxx has been disable bet.

errorCode

ErrorCode ErrorType Description
0 Operation succeeded This member's operation succeeded
10305 Operation failed Agent login or bet was disabled
10501 Operation failed No such account was found, please check
10705 Operation failed Parameter error or not input

api Function-EditLimit

Purpose

Edit player Limit。

maxwin, maxlose, limitType as part of risk control. Set the member's maximum win or lose amount.Please make good use of it

Request

Field Type Description
cmd String EditLimit
vendorId String Agents (AID)
signature String Agent identifier<
user String account
maxwin Integer Max Win (unnecessary)
(This is a part of risk control, please make good use of it)
reset Integer 1:Time reset (unnecessary)
maxlose Integer Max Lose (unnecessary)
(This is a part of risk control, please make good use of it)
limitType String ex:2,5,9,14,48,107,111,131 (unnecessary)
(This is a part of risk control, please make good use of it)
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English (unnecessary)

Response

Field Type Description
errorCode Integer The error code (0: Successful; other values: Failed)
errorMessage String The error message
result String Array

ErrorCode

ErrorCode ErrorType Description
0 Operation successfully The member’s operation was successful
106 Parameter error New data error
900 Parameter error No such function was found
10501 Operation failure No such account, please check it
10502 Parameter errors The account name must not be blank

API Function - GetUnsettleReport

Purpose

search unsettled orders.

Report query interval is 30 seconds,no data was found report query interval is 10 seconds.

Please note : The report data is retained for 60 days.

Request

Field Type Description
cmd String GetUnsettleReport
vendorId String Agents (AID)
signature String Agent identifier<
Time interger For example: 20190108 (8th, January , 2019)
timestamp Integer Unix Timestamp ex: 1603436917
syslang Integer 0:Chinese, 1:English

Response

Field Type Description
errorCode Integer The error code (0: Successful; other values: Failed)
errorMessage String The error message
result Array
Field Type Description
user String The account
betid interger order number
betTime date bet time
bet float Bet amount
betResult String Bet result ex:"Banker"
gid interger Game type number 101:Baccarat, 102:Dragon and Tiger, 103:Roulette, 104:sic bo, 105:niuniu, 107:fantan, 108:sedie, 110:fishshrimpcrab
event or round interger Round number
eventChild or subround interger Subsidiary round number
tableId interger Table number
gameResult String Card type ex: Banker ♦3♦3 Player ♥9♣10
gname String Game name ex: Baccarat
commission Integer 0:general, 1:NO Commission

errorCode

ErrorCode ErrorType Description
0 Operation successfully Operation was successful
107 Operation succeeded The operation succeeded but no data was found
102 Parameter error The time format is incorrect
10411 Operation failure Please try again in 30 seconds.

Other Error Code

Errorcode

ErrorCode ErrorType Description
0 Operation successfully The member’s operation was successful
103 Parameter errors Agent ID and identifier format error
900 Parameter errors No such function
911 Operation failure Server is busy
10201 Parameter errors This function allow to inquire the report within one day; you have exceed the maximum number
10202 Parameter errors Timestamp is abnormal, more than 30 seconds.
10301 Parameter errors Agent ID is null, please check (vendorId)
10302 Parameter errors No Agent ID Record
10303 Parameter errors Agent exists but agent code (signature) is wrong
10304 Parameter errors agent code (signature) is null
10411 Operation failure Please try again in 30 seconds.
10418 Operation failure Please try again in 10 seconds.
10501 Parameter errors No such account, please check it
10502 Parameter errors The account name must not be blank
10504 Parameter errors This account's password is incorrect
10505 Parameter errors Disabled account
10507 Parameter errors This account is non-agent referral ; this function is not available
10512 Parameter errors Account password format is incorrect
10601 Parameter errors Limits are not open, please check
